Kiln Furnace Oven Programmable Pid Temperature Controller 220V SSR Relay Output 72mm 30 Segment Program Controller(Relay Output 1 Alarm)

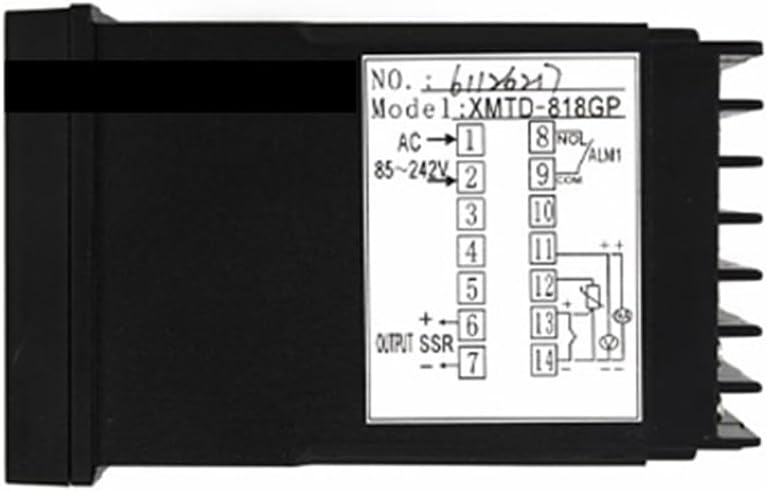

Thermostats & AccessoriesKiln Furnace Oven Programmable Pid Temperature Controller 220V SSR Relay Output 72mm 30 Segment Program ControllerPACKING LIST1 X Programmable Pid Temperature Controller +English ManualControl Output: SSR Output or Relay Output (Optional)Input Specification: K, E, J ,S ,Pt100, Cu50Alarm Output: 1 Alarm Output/2 Alarm Output Power Supply: 85-242VAC,50/60 HzDimensions: 72 x 72mmAccuracy Class: ±0.5%FSApplication: Oven/Electric Kiln/Electric Furnace/Muffle Furnaces etcMax 30 Segments Programmable With Ramp Hold Soak FunctionORDERING INFORMATIONModel NumberExternal DimensionsOutput TypeInput TypeAlarm OutputXMTD-818GP72x72x110 mmSSR OutputK E J S / Pt100 Cu501 AlarmXMTD-818P72x72x110 mmRelay OutputK E J S / Pt100 Cu501 AlarmXMTD-838GP72x72x110 mmSSR OutputK E J S / Pt100 Cu502 AlarmXMTD-838P72x72x110 mmRelay OutputK E J S / Pt100 Cu502 AlarmP=Max 30 Segments Programmable With Ramp Hold Soak FunctionSPECIFICATIONModel NumberXMT-8 SeriesAccuracy±0.5%FSSupply Voltage85-242VAC,50/60 HzInput TypeThermocouple: K, E, J, S: Pt100, Cu50Output TypeRelay Output /SSR Output (Optional)Auxiliary FunctionProgrammable (Ramp/Hold/Soak)Power ConsumptionLess Than 4WControl MethodPid or ON/OFFSetting MethodTouch SwitchIndication Method8-Segment 4-Digital Display and LED IndicationAlarm Output1 Alarm/2 Alarm (Optional)Sampling Period0.5SOperating Humidity85% RH Max, Non-CondensingWITH RAMP/ HOLD /SOAK FUNCTION
